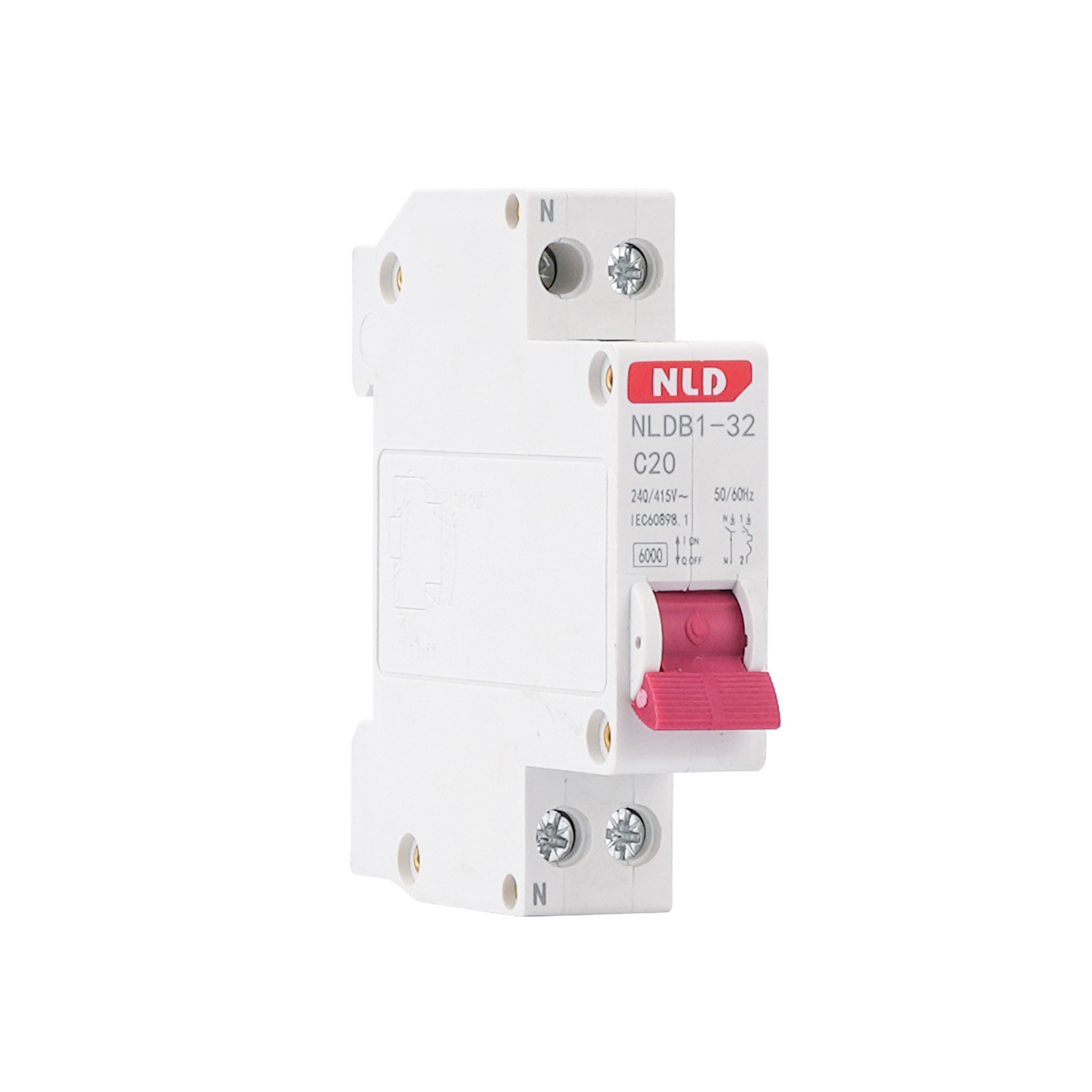

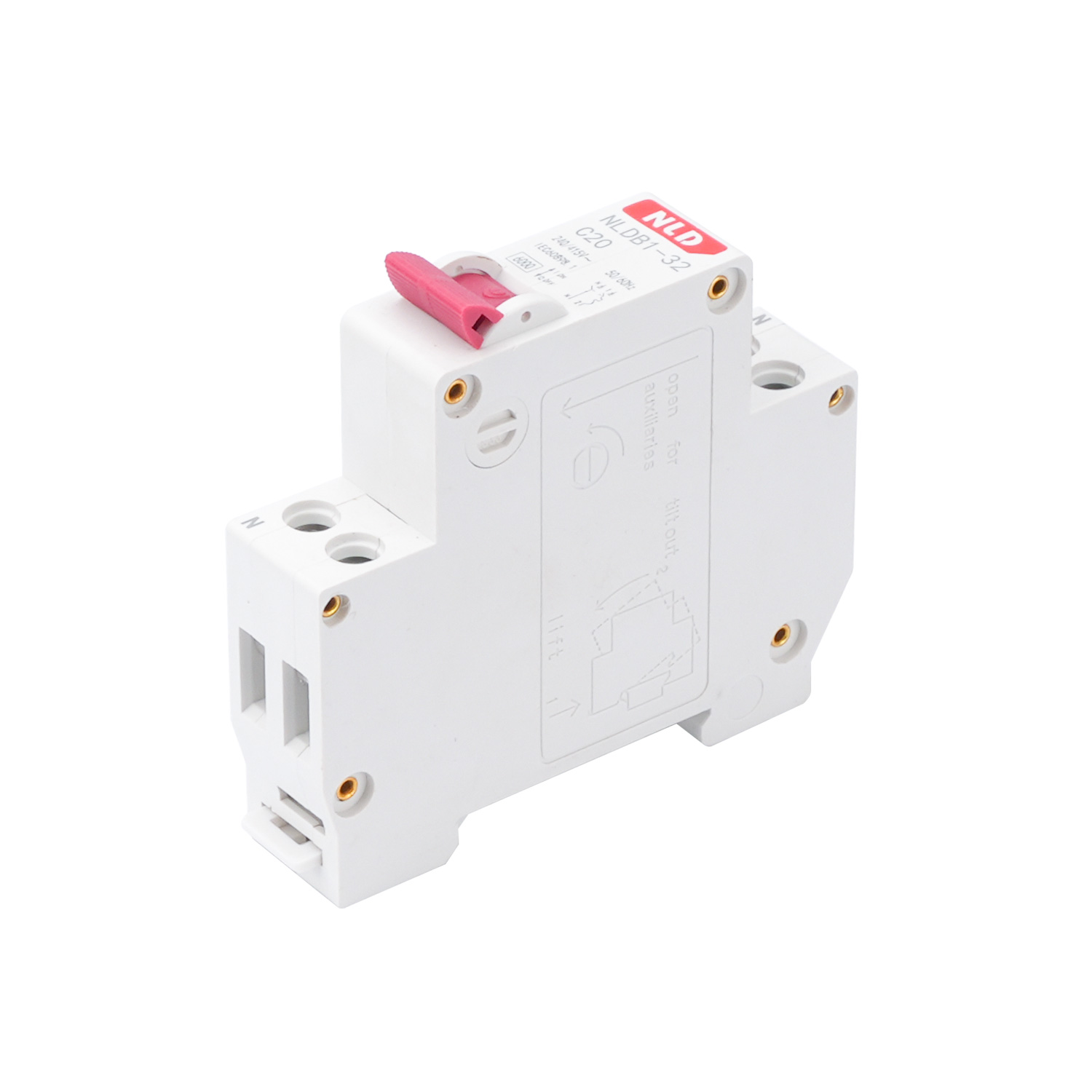

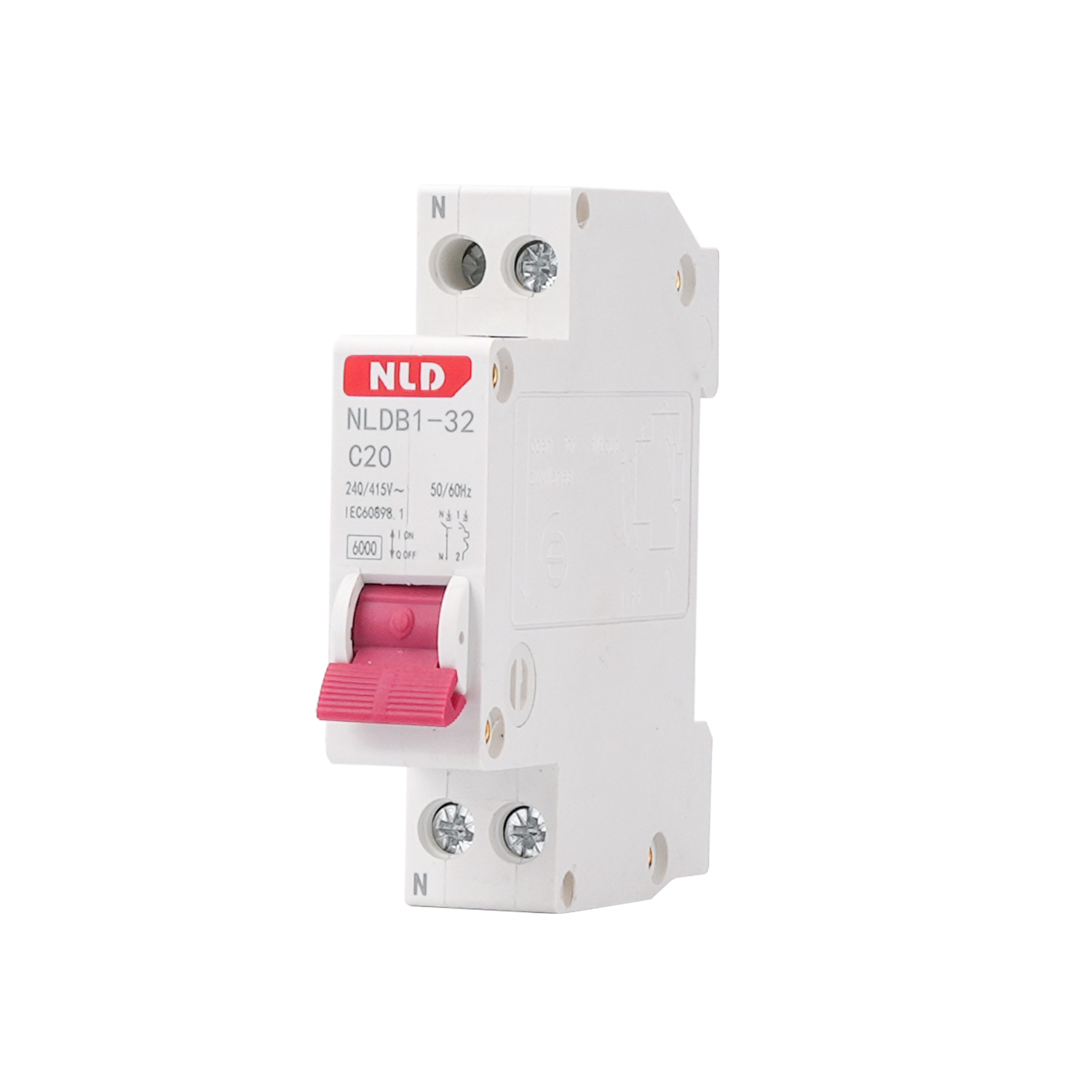

◼NLDB1-32 series high breaking miniature circuit breaker s are suitable for single-phase residential AC 50Hz lines with rated voltage of 230V and below,mainly used to protect electrical lines from overload and shor t circuit. This product has high breaking capacity and small volume with width of only 18mm.Simultaneous cutting off of the zero and live wires eliminates the risk of personal injury and fire caused by the reverse connection of the zero and live wires or the potential between the zero wire and the ground. It is currently the most ideal distribution protection switch used in the residential field.

◼This product complies with the standards of GB/T10963.1 and IEC60898.

Note:

Damp heat resistance: Class 2 (temperature 55℃, relative humidity 95%).

Wiring: it adopts terminals with clamps, and the fixed cable cross section can reach 10mm²
