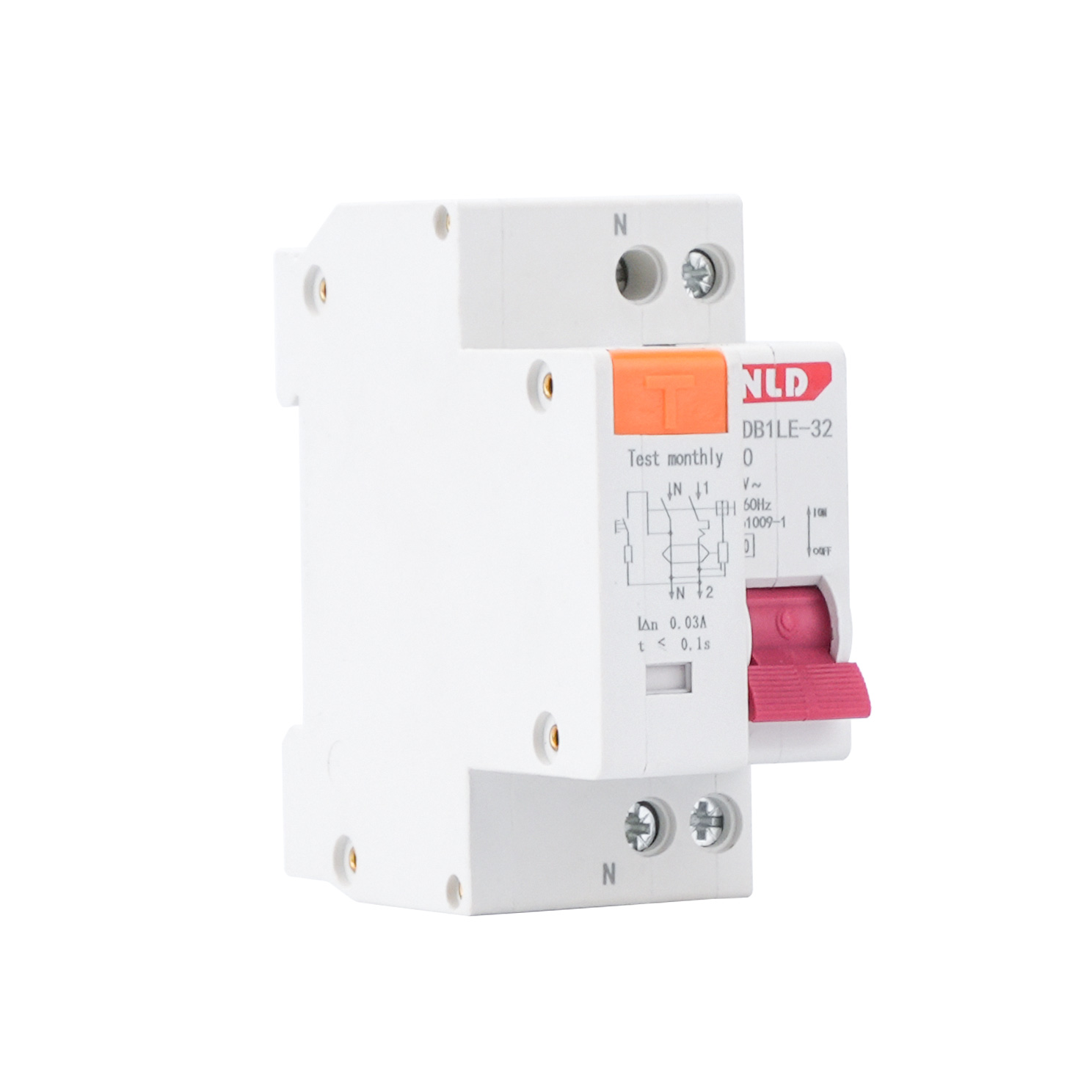

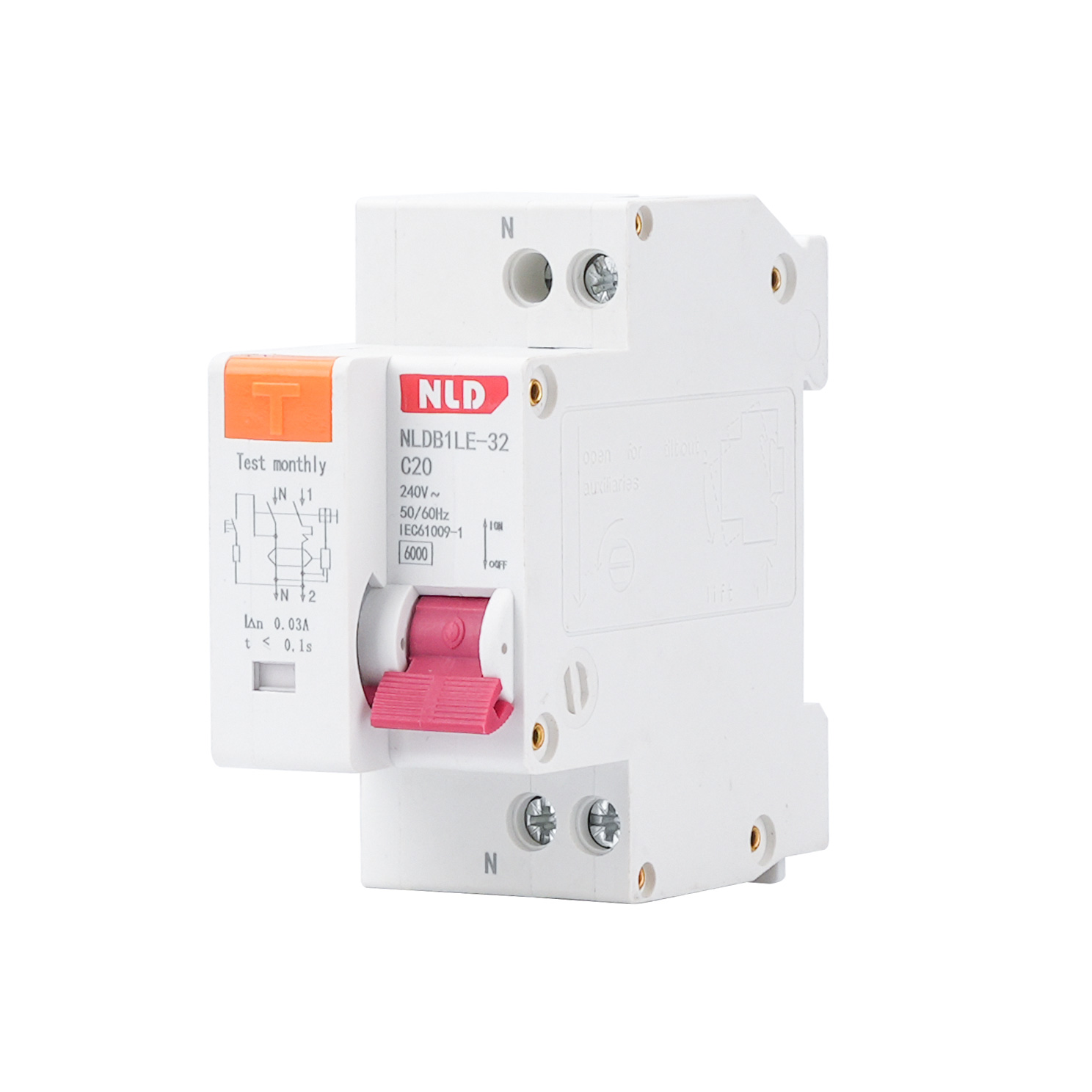

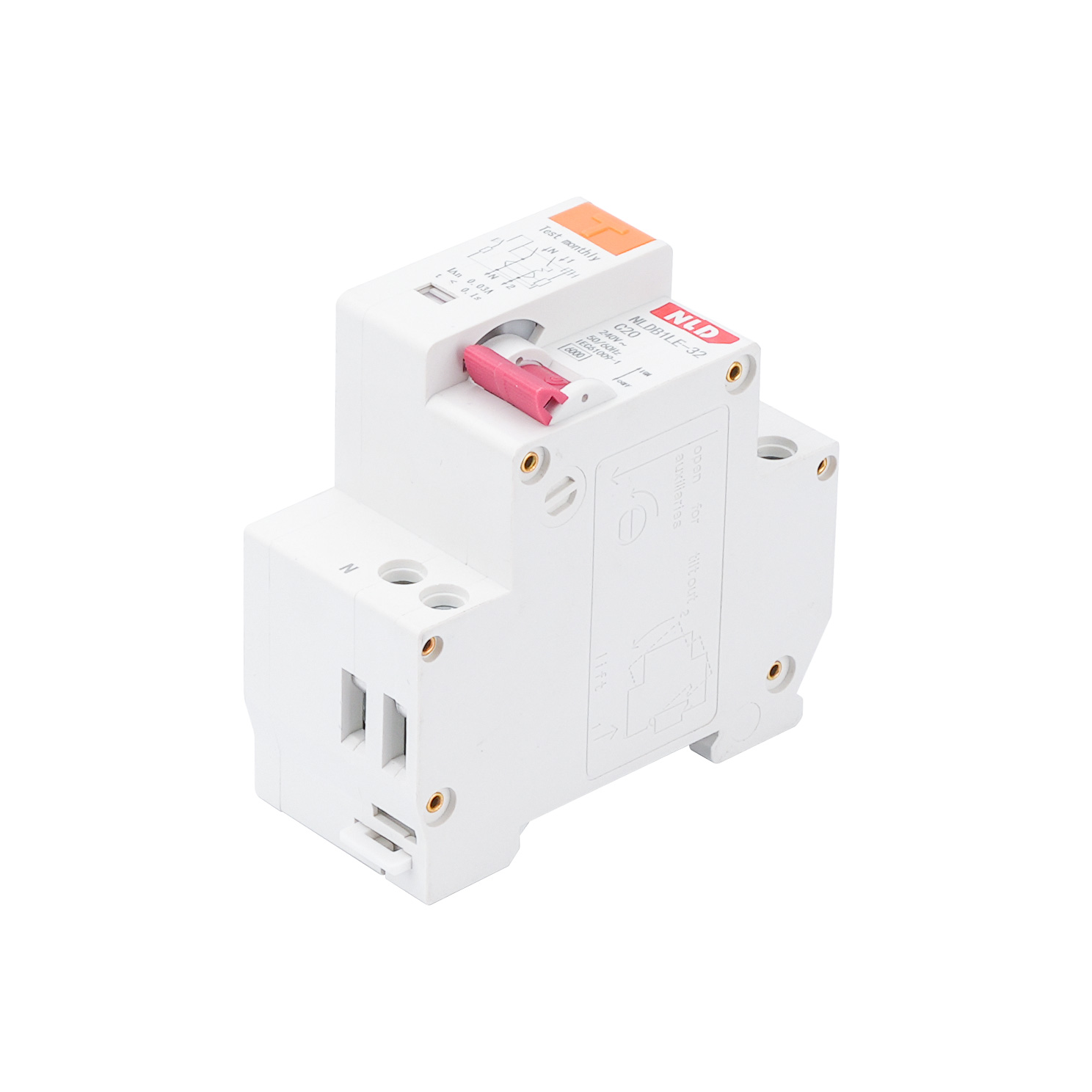

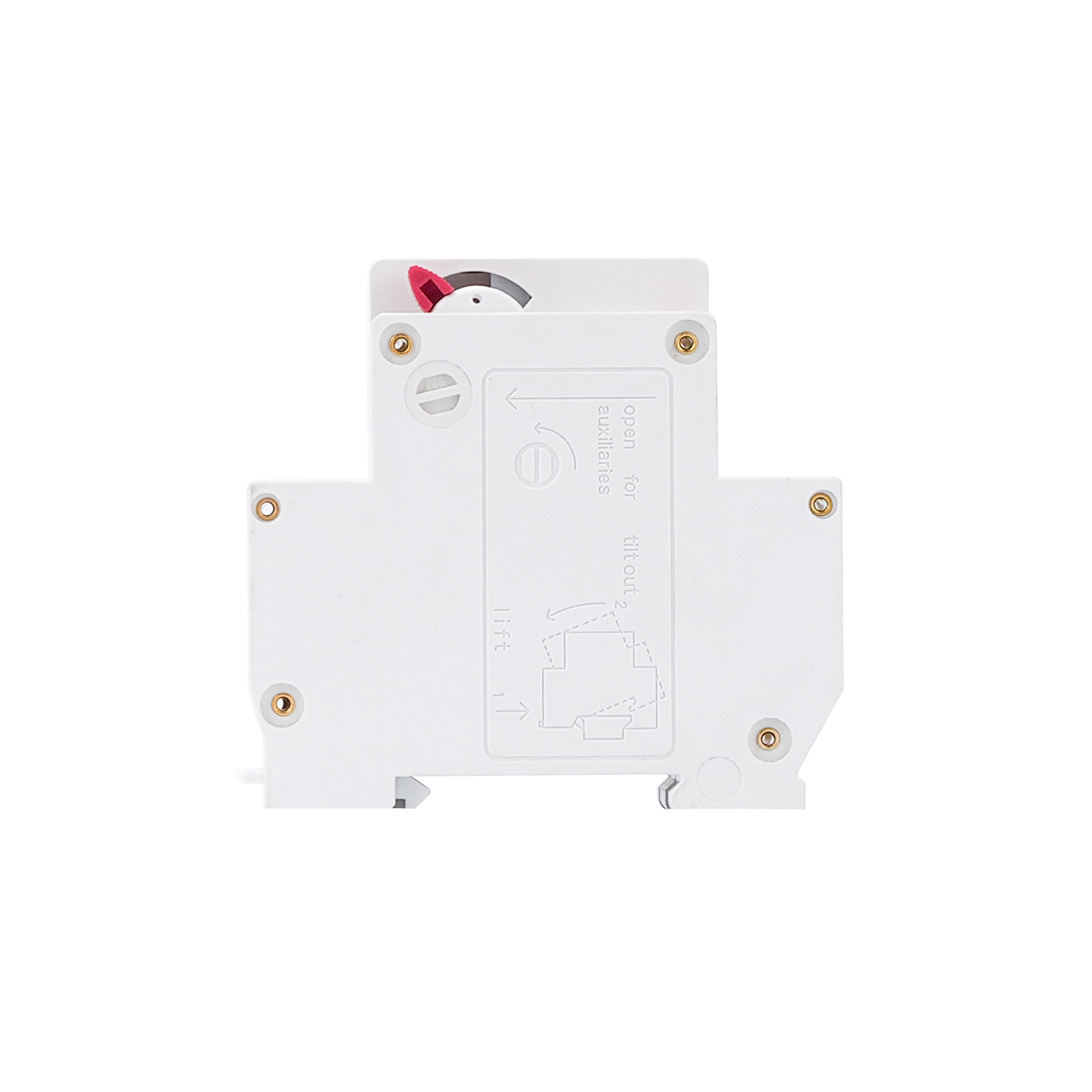

◼NLDB1L-32 series high breaking miniature residual current circuit breaker is suitable for AC 50Hz or 60Hz single-phase residential lines with rated voltage up to 230V. It is used for personal electric shock protection and for overload and short circuit protection of civil electrical lines. This product has a small volume and high breaking capacity; both zero and live wires are cut off simultaneously, and even if the live wire is rever sed, it can still protect individuals from electric shock.

This product can also add overvoltage protection function according to user requirements.

◼This product complies with the standards of GB/T16917.1 and IEC61009-1.

Note: The wiring adopts terminals with clamps, with hard wires of 10mm2 or less.
