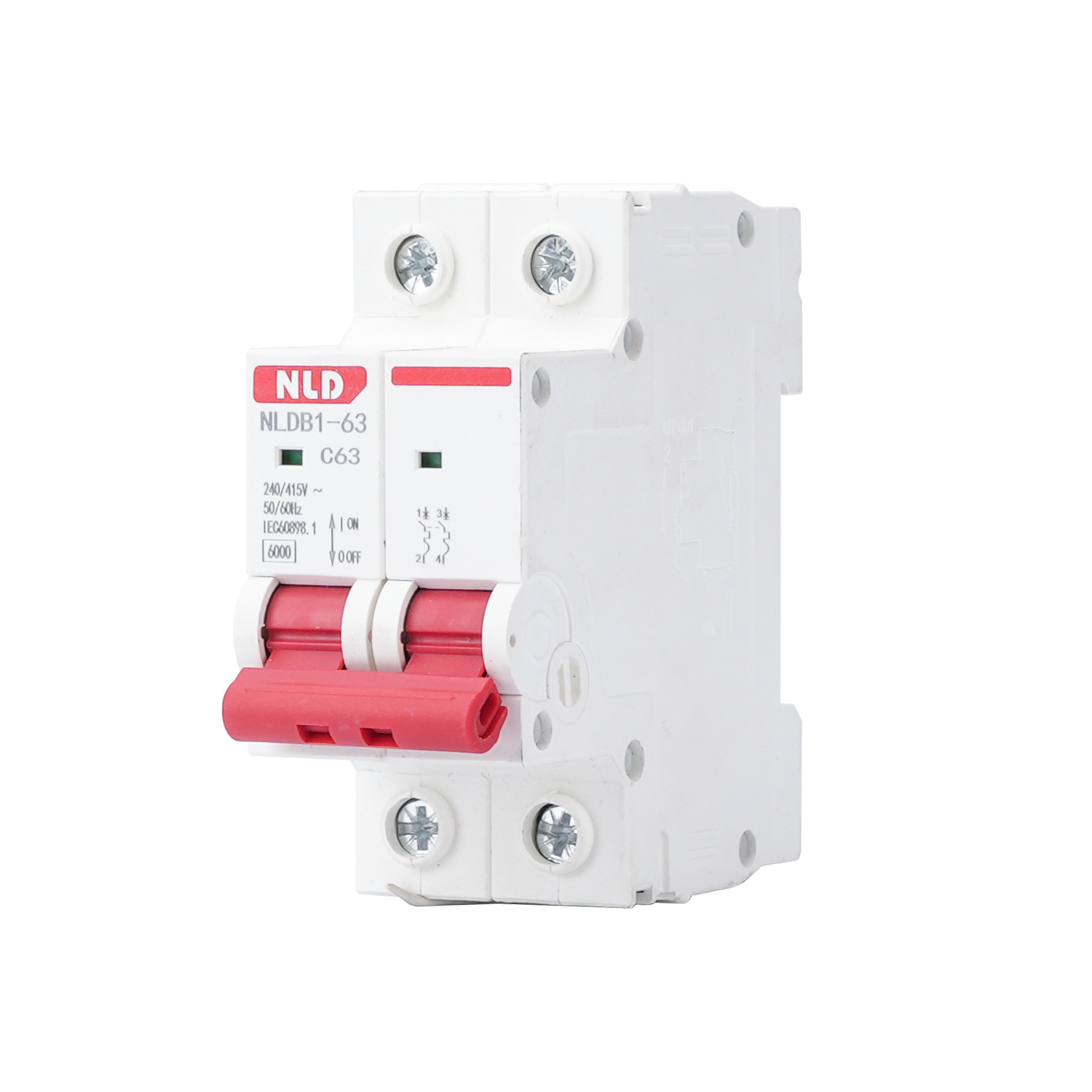

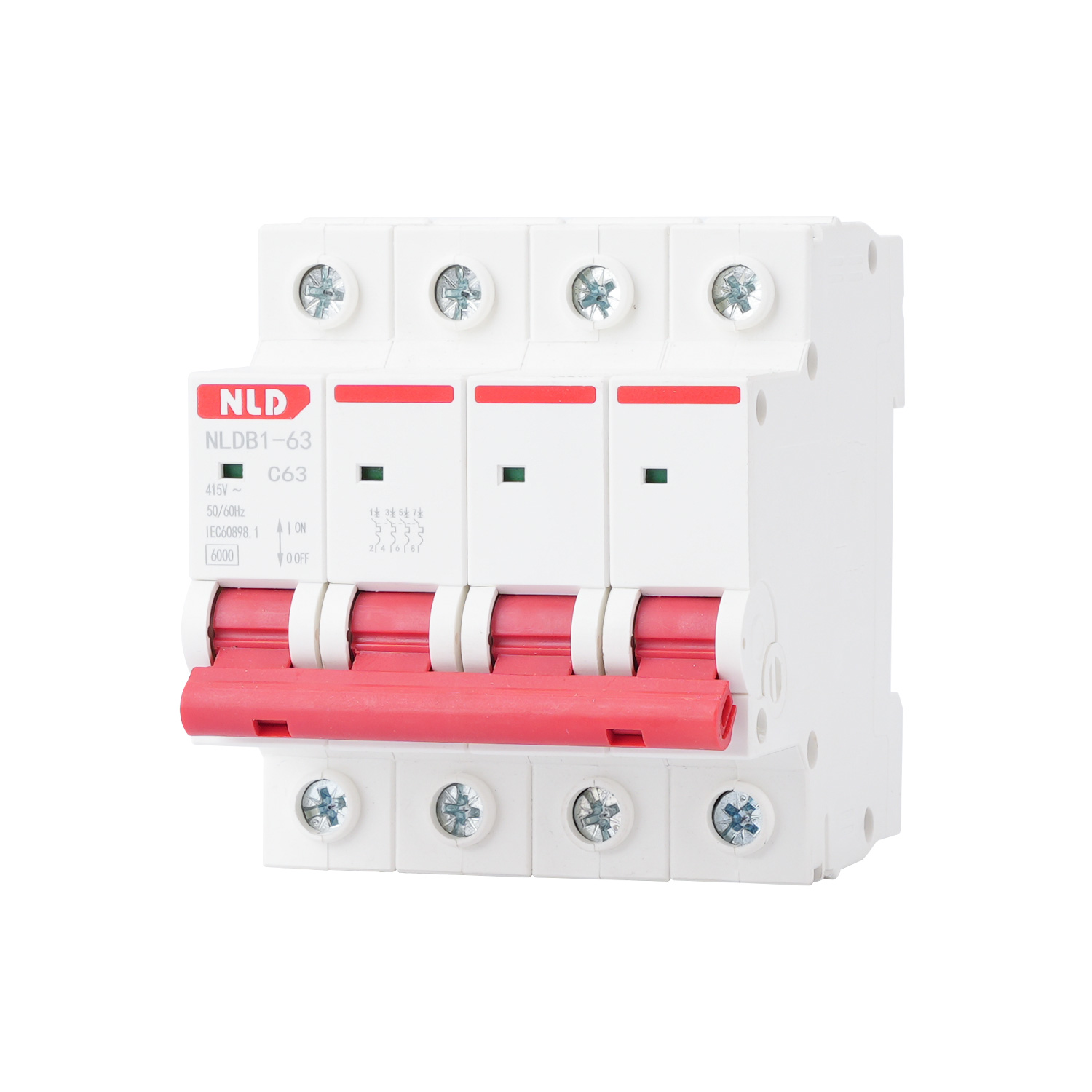

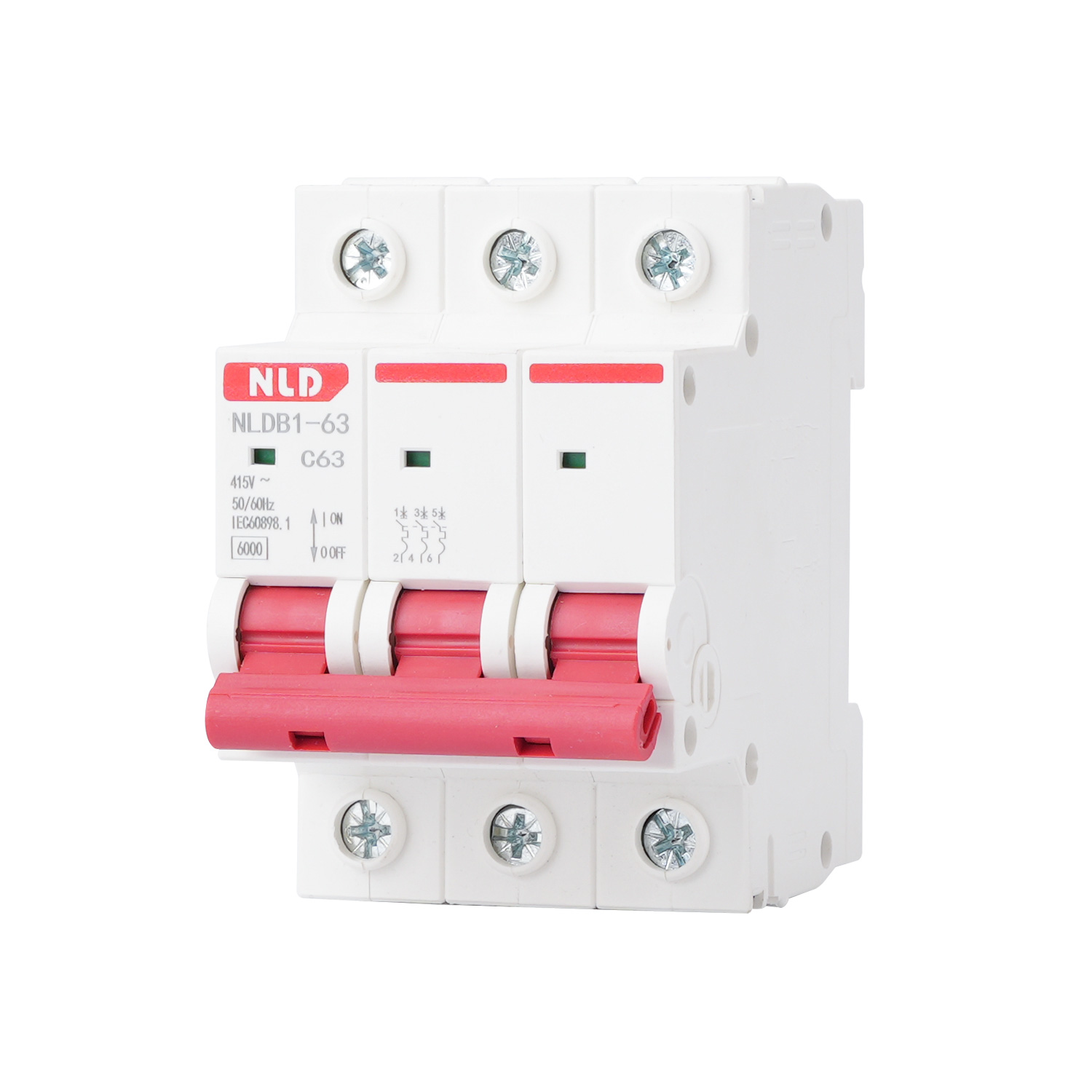

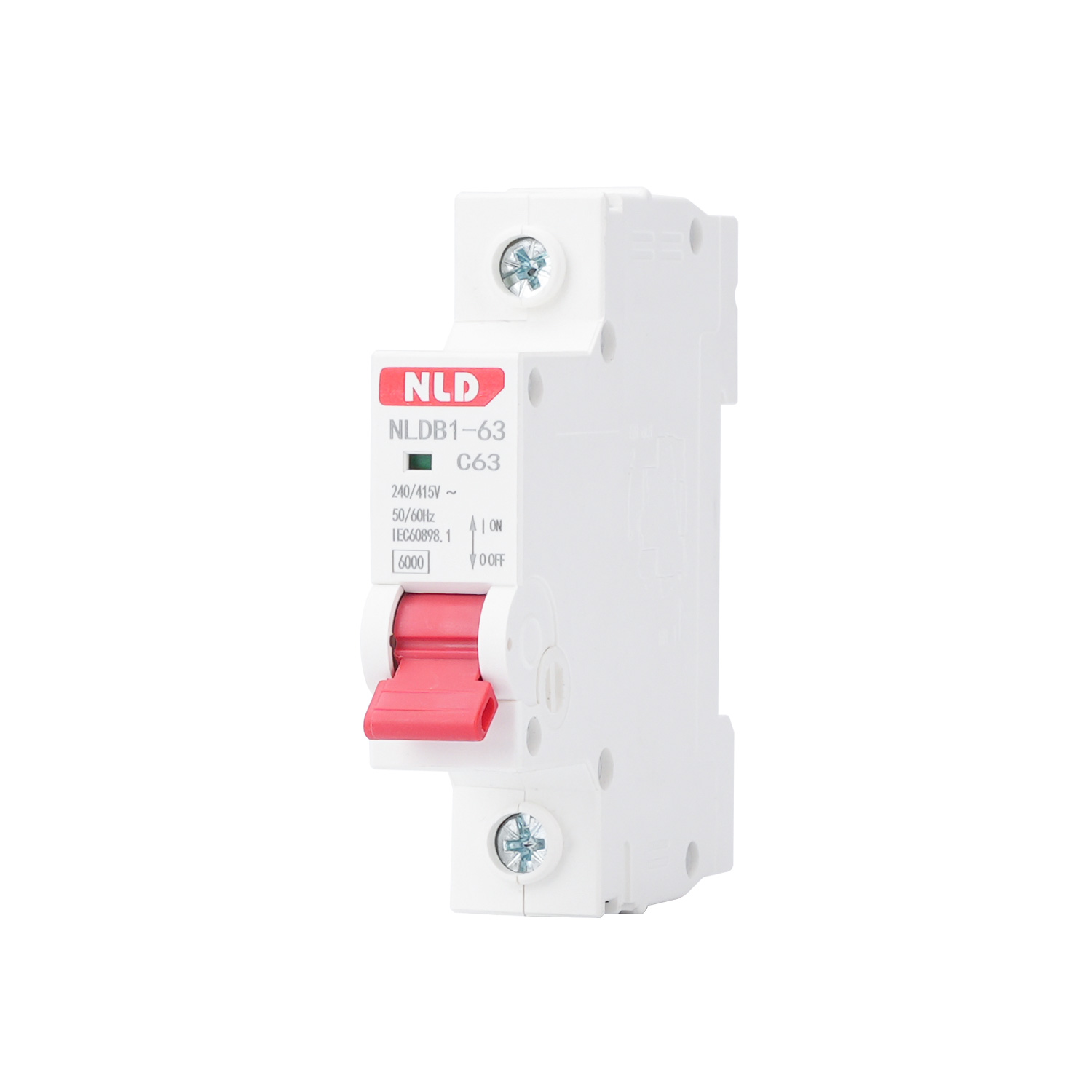

◼NLDB1-63 high breaking miniature circuit breaker has the characteristics of advanced and reasonable structure, reliable performance, high breaking capacity, and beautiful and compact appearance. The shell and other components are made of impact resistant and high flame retardant materials. It's suitable for places with AC 50Hz or 60Hz, rated operating voltage below 400V, and rated current ranging from 3A to 63A , mainly used for lighting, distribution lines, and equipment overload and short circuit protection in office buildings, residential buildings, and similar buildings. It can also be used for infrequent circuit breaking and switching under normal circumstances.

◼This product complies with the standards of IEC60898 and Gb10963.

Note:

Mechanical life: 20000 times (off-on)

Electrical life: 4000 times

Damp heat resistance: Class 2 (temperature 55℃, relative humidity 95%)

The wiring adopts terminals with clamps, and the cable carrying capacity can reach 25mm2
